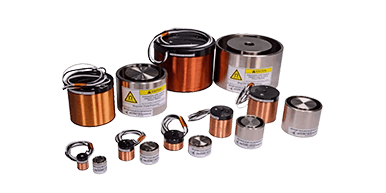

AVM圆柱型音圈电机

AVM系列圆柱型音圈电机,线圈中的电流与永磁体相互作用产生推力,实现直线运动。音圈电机最适合50 mm或更小的行程。5 mm到10 mm的距离是理想的。这些电机专为高精度低力运动而设计,适用于医疗,激光打标,半导体线焊,拾取和放置等精密应用。

产品详情

对于需要在很短距离内快速移动的应用,音圈电机可以是很好的解决方案。音圈电动机本质上是单相线性电动机。它由一个中心带磁铁的线圈组成。向线圈施加电流会移动磁铁。


ABM音圈电机:特点

A.无齿槽效应,运动顺滑

B.动子质量轻,响应速度快

C.直驱设计,可靠性高

D.采用高性能永磁体,推力高


1588159890522074


Akribis音圈电机

AVM 标准系列

电机规格直径有效行程(mm)持续推力(N)(100℃)峰值推力(N)线圈重(g)总质量(g)
AVM12-6.412.76.40.913.535.012
AVM19-51951.757.889.032.8
AVM-20-1020101.567.6011.056.1
AVM-24-52452.1011.4012.041.7
AVM24-1024102.6514.8216.561.5
AVM30-1530154.6329.4036.0131.6
ANM40-2040209.9358.0567.0293.2
AVM60-25602526.35119.00215.0907.9
AVM90-30903089.10315.00820.02570.0





AVM 高推力系列

电机规格直径有效行程(mm)持续推力(N)(100℃)峰值推力(N)线圈重(g)总质量(g)
AVM35-HF-735714.407253.0199.8
AVM40-HF-6.5406.516.5693.1568286.7
AVM50-HF-10501033.60140.00148.0701.0
AVM60-HF-10601051.20224.00236.51233.5
AVM90-HF-109010152.67610.68960.03360.0
AVM100-HF-1010010192.50770.001117.04417.0
AVM130-HF-2513025360.36764.401550.010850.0
AVM250-HF-20260201111.444715.205900.033100.0





AVM 特殊系列



电机规格直径有效行程(mm)持续推力(N)(100℃)峰值推力(N)线圈重(g)总质量(g)
AVM14-HF-4-C1914.242.447.337.020.7
AVM14-10-C5614.2100.982.953.016.6
AVM-20-HF-6-C282065.6917.0613.561.0
AVM24-HF-5-C132455.8831.9221.5103.5
AVM30-7-C603075.6424.8015.3101.5
AVM35-HF-15-C22351519.7698.8080.7341.7
AVM35-HF-8-C3535827.43137.1685.2456.6
AVM35-HF-10-C31521016.7283.6078.0363.7
AVM40-20-C1840208.1147.3965.0270.0
AVM40-HF-6.4-C11-A406.418.1899.4049.0244.0
AVM50-HF-10-C15-A501025.20105.00142.0624.0
AVM50-HF-10-C34-A501037.57156.55144.0772.0
AVM75-HF-25-C127525124.69572.90710.02650.0
AVM75-38-C39753845.26192.02534.01811.0
AVM80-12-C8801233.71192.60124.01386.4
AVM90-30-C77903057.30202.60751.21886.3
AVM90-HF-5-C40-A90562.49220.92427.21941.8
AVM130-HF-10-C29-A13010162.10487.201080.06380.0
AVM150-HF-20-C5315020585.771757.301500.014200.0
